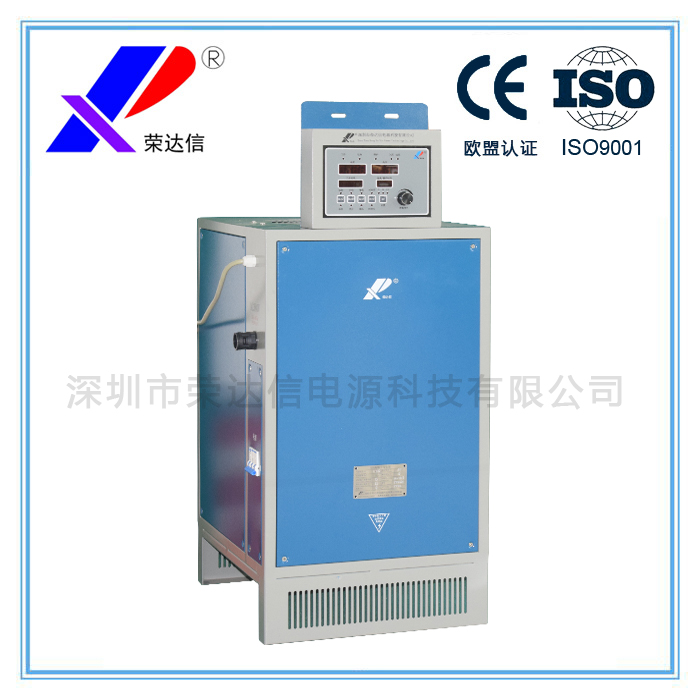

Product specification
Model (customizable) | Cooling mode | Weight(KG) | Size(CM) |
PWH1000A-15V-FZ | Air cooling | 40 | 50-40-60 |
PWH3000A-15V-SZ | Water-cooling | 70 | 55-44-60 |
PWH5000A-15V-FZ | Air cooling | 170 | 68-56-112 |
PWH10000A-15V-SZ | Water-cooling | 320 | 135-70-118 |
PWH20000A-15V-SZ | Water-cooling | 480 | 135-70-185 |
There are many models, which can be customized according to requirements (output voltage 0 ~ 300V, current 0 ~ 30000A) and additional functions. | |||
Product parameters
Input voltage | Three phases: AC380V 50/60HZ |
AC：220V、415V | |
Output voltage | 0～300V |
Output current | 0～30000A |
Output waveform | 30kHz DC square wave |
Direct current | |
Output display | Digital voltage and current display |
Accuracy of steady voltage and steady current | ≤±1% |
High precision control ≤± 0.5% | |
Regulation mode | Digital step adjustment |
Cooling mode | Air cooling type |
Water cooling type | |
Additional functions | 0 ~ 20 period |
Temperature control | |
Ammeter | |
RS485 | |
Soft start | |
Multiple on-line control systems |
Product features
1. The power host has the advantages of small volume, light weight, elegant appearance, convenient installation, safe use, anti-corrosion and durability (Patent No.: ZL 202030588890.9).
2. The power supply has protection functions such as phase loss, overheating, overcurrent, short circuit, undervoltage and overvoltage.
3. The main power transformer adopts the high-efficiency amorphous transformer with high power density and small leakage inductance independently developed and produced by the company (Patent No.: ZL 201922084958.4).
4. High power factor, high efficiency, stable output frequency, high control accuracy, high voltage and current output stability, which can effectively improve product quality.
Product use
It can be used for hardware and plastic electroplating; PCB electroplating; Precious metal precision electroplating; Electrophoretic coating; Oxidation, electrolytic polishing, sewage electrolytic treatment; Metal refining, resistive heating, vacuum furnace heating and pipeline heating; Aging power supply and other DC customized power supply.
